Socket Weld Coupling

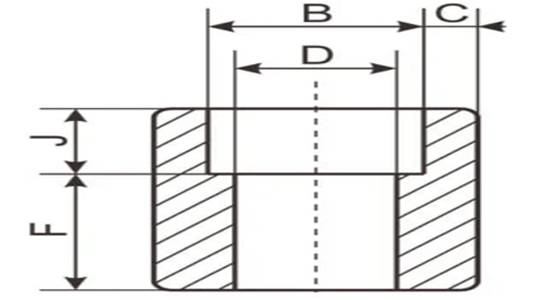

| SW HALF COUPLING,ASME B 16.11 | |||||||||
 |
|||||||||
| Sr. No. | SIZE (NPS) | Socket Bore Dia (B) | Bore Diameter (D) | Socket Wall Thickness (C) | Socket Dept (J) | Laying Length (F) | |||
| 3000# | 3000# | ||||||||
| Max. | Min. | Max. | Min. | Avg. | Min. | Min. | |||
| 1 | 1/2" | 22.2 | 21.8 | 16.6 | 15.0 | 4.67 | 4.09 | 9.5 | 22.5 |
| 2 | 3/4" | 27.6 | 27.2 | 21.7 | 20.2 | 4.90 | 4.27 | 12.5 | 24.0 |
| 3 | 1" | 34.3 | 33.9 | 27.4 | 25.9 | 5.69 | 4.98 | 12.5 | 28.5 |
| 4 | 1 1/4" | 43.1 | 42.7 | 35.8 | 34.3 | 6.07 | 5.28 | 12.5 | 30.0 |
| 5 | 1 1/2" | 49.2 | 48.8 | 41.6 | 40.1 | 6.35 | 5.54 | 12.5 | 32.0 |
| 6 | 2" | 61.7 | 61.2 | 53.3 | 51.7 | 6.93 | 6.04 | 16.0 | 41.0 |
| 7 | 2 1/2" | 74.4 | 73.9 | 64.2 | 61.2 | 8.76 | 7.67 | 16.0 | 43.0 |
| 8 | 3" | 90.3 | 89.8 | 79.4 | 76.4 | 9.52 | 8.30 | 16.0 | 44.0 |
| 9 | 4" | 115.7 | 115.2 | 103.8 | 100.7 | 10.69 | 9.35 | 19.0 | 48.0 |
NOTE : 1. All Dimension are in mm unless specified
2.Dimension are as per ASME B 16.11.
3.Avg.of socket wall thickness around periphery shall not be less than listed values.
|
|||||||||
| Sr. No. | SIZE (NPS) | Socket Bore Dia(B) | Bore Diameter (D) | Socket Wall Thickness (C) | Socket Depth (J) | Laying Length (F) | |||
| 6000# | 6000# | ||||||||
| Max. | Min. | Max. | Min. | Avg. | Min. | Min. | |||
| 1 | 1/2" | 22.2 | 21.8 | 12.5 | 11.0 | 5.97 | 5.18 | 9.5 | 22.5 |
| 2 | 3/4" | 27.6 | 27.2 | 16.3 | 14.8 | 6.96 | 6.04 | 12.5 | 24.0 |
| 3 | 1" | 34.3 | 33.9 | 21.5 | 19.9 | 7.92 | 6.93 | 12.5 | 28.5 |
| 4 | 1 1/4" | 43.1 | 42.7 | 30.2 | 28.7 | 7.92 | 6.93 | 12.5 | 30.0 |
| 5 | 1 1/2" | 49.2 | 48.8 | 34.7 | 33.2 | 8.92 | 7.80 | 12.5 | 32.0 |
| 6 | 2" | 61.7 | 61.2 | 43.6 | 42.1 | 10.92 | 9.50 | 16.0 | 41.0 |
NOTE : 1. All Dimension are in mm unless specified
2.Dimension are as per ASME B 16.11.
3.Avg.of socket wall thickness around periphery shall not be less than listed values.

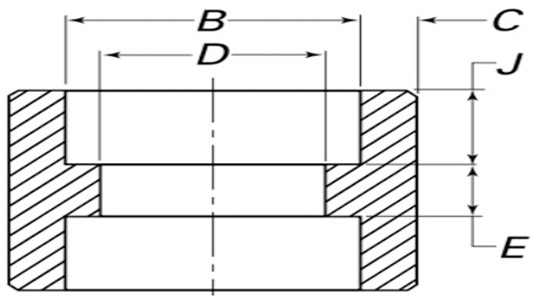

| SW FULL COUPLING,ASME B 16.11 | |||||||||
 |
|||||||||
| Sr. No. | SIZE (NPS) | Socket Bore Dia (B) | Bore Diameter (D) | Socket Wall Thickness (C) | Socket Depth (J) | Laying Length (E) | |||
| 3000# | 3000# | ||||||||
| Max. | Min. | Max. | Min. | Avg. | Min. | Min. | |||
| 1 | 1/2" | 22.2 | 21.8 | 16.6 | 15.0 | 4.67 | 4.09 | 9.5 | 9.5 |
| 2 | 3/4" | 27.6 | 27.2 | 21.7 | 20.2 | 4.90 | 4.27 | 12.5 | 9.5 |
| 3 | 1" | 34.3 | 33.9 | 27.4 | 25.9 | 5.69 | 4.98 | 12.5 | 12.5 |
| 4 | 1 1/4" | 43.1 | 42.7 | 35.8 | 34.3 | 6.07 | 5.28 | 12.5 | 12.5 |
| 5 | 1 1/2" | 49.2 | 48.8 | 41.6 | 40.1 | 6.35 | 5.54 | 12.5 | 12.5 |
| 6 | 2" | 61.7 | 61.2 | 53.3 | 51.7 | 6.93 | 6.04 | 16.0 | 19.0 |
| 7 | 2 1/2" | 74.4 | 73.9 | 64.2 | 61.2 | 8.76 | 7.67 | 16.0 | 19.0 |
| 8 | 3" | 90.3 | 89.8 | 79.4 | 76.4 | 9.52 | 8.30 | 16.0 | 19.0 |
| 9 | 4" | 115.7 | 115.2 | 103.8 | 100.7 | 10.69 | 9.35 | 19.0 | 19.0 |
NOTE : 1. All Dimension are in mm unless specified
2.Dimension are as per ASME B 16.11.
3.Avg.of socket wall thickness around periphery shall not be less than listed values.
|
|||||||||
| Sr. No. | SIZE (NPS) | Socket Bore Dia(B) | Bore Diameter (D) | Socket Wall Thickness (C) | Socket Depth (J) | Laying Length (E) | |||
| 6000# | 6000# | ||||||||
| Max. | Min. | Max. | Min. | Avg. | Min. | Min. | |||
| 1 | 1/2" | 22.2 | 21.8 | 12.5 | 11.0 | 5.97 | 5.18 | 9.5 | 9.5 |
| 2 | 3/4" | 27.6 | 27.2 | 16.3 | 14.8 | 6.96 | 6.04 | 12.5 | 9.5 |
| 3 | 1" | 34.3 | 33.9 | 21.5 | 19.9 | 7.92 | 6.93 | 12.5 | 12.5 |
| 4 | 1 1/4" | 43.1 | 42.7 | 30.2 | 28.7 | 7.92 | 6.93 | 12.5 | 12.5 |
| 5 | 1 1/2" | 49.2 | 48.8 | 34.7 | 33.2 | 8.92 | 7.80 | 12.5 | 12.5 |
| 6 | 2" | 61.7 | 61.2 | 43.6 | 42.1 | 10.92 | 9.50 | 16.0 | 19.0 |
NOTE : 1. All Dimension are in mm unless specified
2.Dimension are as per ASME B 16.11.
3.Avg.of socket wall thickness around periphery shall not be less than listed values.

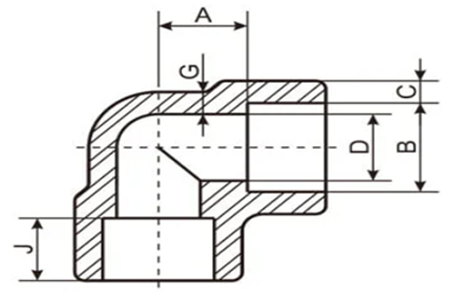

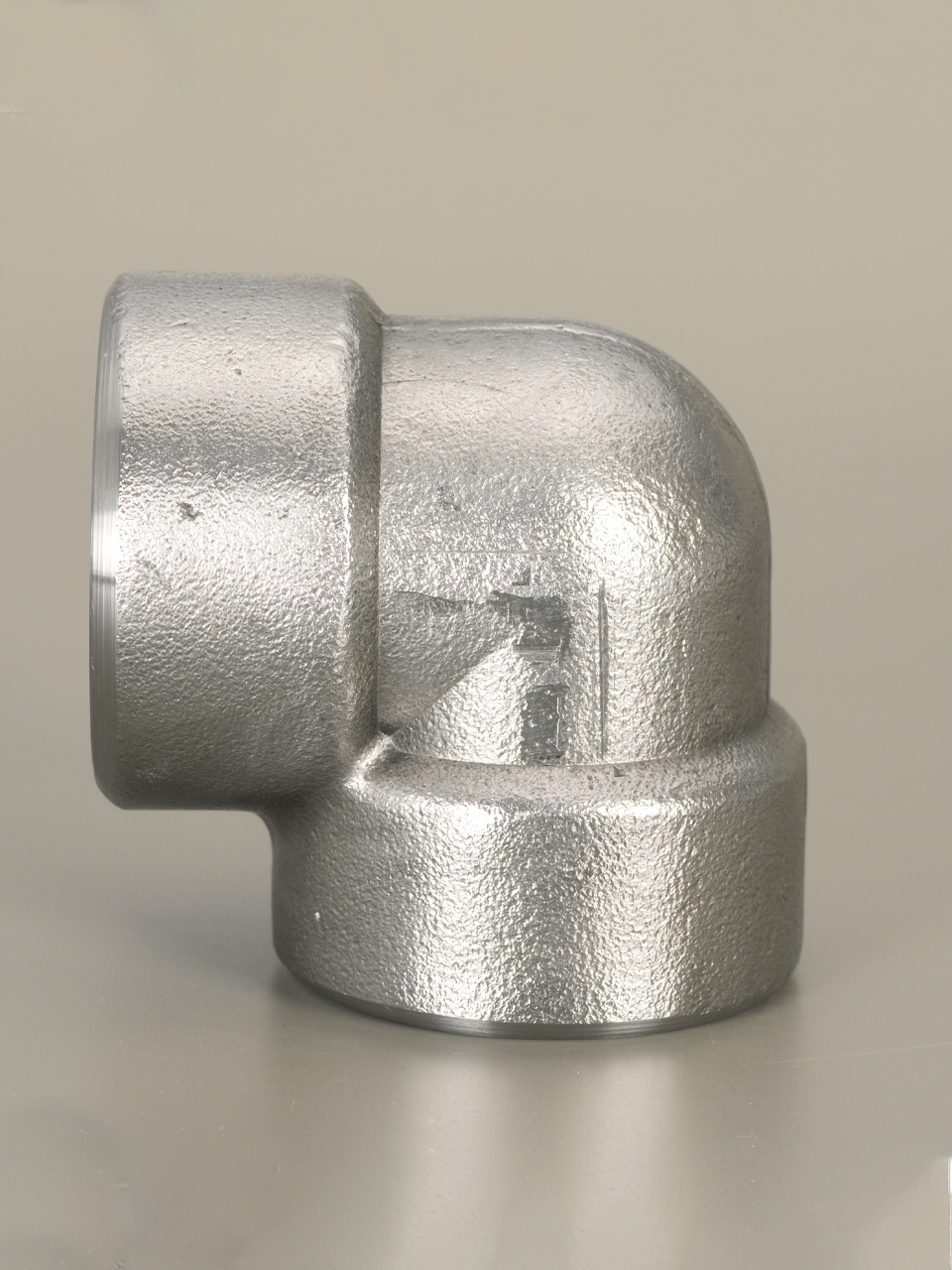

| SW ELBOW 90° | ||||||||||
 |
||||||||||
| Sr. No. | SIZE | Socket Bore Dia | Bore Diameter | Socket Wall Thickness | Socket Depth | Body Wall | Center to bottom of Socket | |||
| (NPS) | (B) | (D) | ( C) | (J) | (G) | (A) | ||||
| 3000# | 3000# | |||||||||
| Max. | Min. | Max. | Min. | Avg. | Min. | Min. | Min. | |||
| 1 | 1/2" | 22.2 | 21.8 | 16.6 | 15.0 | 4.67 | 4.09 | 9.5 | 3.73 | 15.5 |
| 2 | 3/4" | 27.6 | 27.2 | 21.7 | 20.2 | 4.90 | 4.27 | 12.5 | 3.91 | 19.0 |
| 3 | 1" | 34.3 | 33.9 | 27.4 | 25.9 | 5.69 | 4.98 | 12.5 | 4.55 | 22.5 |
| 4 | 1 1/4" | 43.1 | 42.7 | 35.8 | 34.3 | 6.07 | 5.28 | 12.5 | 4.85 | 27.0 |
| 5 | 1 1/2" | 49.2 | 48.8 | 41.6 | 40.1 | 6.35 | 5.54 | 12.5 | 5.08 | 32.0 |
| 6 | 2" | 61.7 | 61.2 | 53.3 | 51.7 | 6.93 | 6.04 | 16.0 | 5.54 | 38.0 |
| 7 | 2 1/2" | 74.4 | 73.9 | 64.2 | 61.2 | 8.76 | 7.67 | 16.0 | 7.01 | 41.0 |
| 8 | 3" | 90.3 | 89.8 | 79.4 | 76.4 | 9.52 | 8.30 | 16.0 | 7.62 | 57.0 |
| 9 | 4" | 115.7 | 115.2 | 103.8 | 100.7 | 10.69 | 9.35 | 19.0 | 8.56 | 66.5 |
NOTE : 1. All Dimension are in mm unless specified
2. Dimension are as per ASME B 16.11.
3. Avg.of socket wall thickness around periphery shall not be less than listed values.
| Sr. No. | SIZE | Socket Bore Dia | Bore Diameter | Socket Wall Thickness | Socket Depth | Body Wall | Center to bottom of Socket | |||
| (NPS) | (B) | (D) | ( C) | (J) | (G) | (A) | ||||
| 6000# | 6000# | |||||||||
| Max. | Min. | Max. | Min. | Avg. | Min. | Min. | Min. | |||
| 1 | 1/2" | 22.2 | 21.8 | 12.5 | 11.0 | 5.97 | 5.18 | 9.5 | 4.78 | 19.0 |
| 2 | 3/4" | 27.6 | 27.2 | 16.3 | 14.8 | 6.96 | 6.04 | 12.5 | 5.56 | 22.5 |
| 3 | 1" | 34.3 | 33.9 | 21.5 | 19.9 | 7.92 | 6.93 | 12.5 | 6.35 | 27.0 |
| 4 | 1 1/4" | 43.1 | 42.7 | 30.2 | 28.7 | 7.92 | 6.93 | 12.5 | 6.35 | 32.0 |
| 5 | 1 1/2" | 49.2 | 48.8 | 34.7 | 33.2 | 8.92 | 7.80 | 12.5 | 7.14 | 38.0 |
| 6 | 2" | 61.7 | 61.2 | 43.6 | 42.1 | 10.92 | 9.50 | 16.0 | 8.74 | 41.0 |
NOTE : 1. All Dimension are in mm unless specified
2. Dimension are as per ASME B 16.11.
3. Avg.of socket wall thickness around periphery shall not be less than listed values.

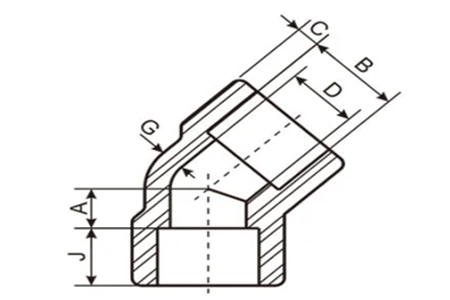

| SW ELBOW 45° | ||||||||||
 |
||||||||||
| Sr. No. | SIZE | Socket Bore Dia | Bore Diameter | Socket Wall Thickness | Socket Depth | Body Wall | Center to bottom of Socket | |||
| (NPS) | (B) | (D) | ( C) | (J) | (G) | (A) | ||||
| 3000# | 3000# | |||||||||
| Max. | Min. | Max. | Min. | Avg. | Min. | Min. | Min. | |||
| 1 | 1/2" | 22.2 | 21.8 | 16.6 | 15.0 | 4.67 | 4.09 | 9.5 | 3.73 | 11.0 |
| 2 | 3/4" | 27.6 | 27.2 | 21.7 | 20.2 | 4.90 | 4.27 | 12.5 | 3.91 | 13.0 |
| 3 | 1" | 34.3 | 33.9 | 27.4 | 25.9 | 5.69 | 4.98 | 12.5 | 4.55 | 14.0 |
| 4 | 1 1/4" | 43.1 | 42.7 | 35.8 | 34.3 | 6.07 | 5.28 | 12.5 | 4.85 | 17.5 |
| 5 | 1 1/2" | 49.2 | 48.8 | 41.6 | 40.1 | 6.35 | 5.54 | 12.5 | 5.08 | 20.5 |
| 6 | 2" | 61.7 | 61.2 | 53.3 | 51.7 | 6.93 | 6.04 | 16.0 | 5.54 | 25.5 |
| 7 | 2 1/2" | 74.4 | 73.9 | 64.2 | 61.2 | 8.76 | 7.67 | 16.0 | 7.01 | 28.5 |
| 8 | 3" | 90.3 | 89.8 | 79.4 | 76.4 | 9.52 | 8.30 | 16.0 | 7.62 | 32.0 |
| 9 | 4" | 115.7 | 115.2 | 103.8 | 100.7 | 10.69 | 9.35 | 19.0 | 8.56 | 41.0 |
NOTE : 1. All Dimension are in mm unless specified
2. Dimension are as per ASME B 16.11.
3. Avg.of socket wall thickness around periphery shall not be less than listed values.
| Sr. No. | SIZE | Socket Bore Dia | Bore Diameter | Socket Wall Thickness | Socket Depth | Body Wall | Center to bottom of Socket | |||
| (NPS) | (B) | (D) | ( C) | (J) | (G) | (A) | ||||
| 6000# | 6000# | |||||||||
| Max. | Min. | Max. | Min. | Avg. | Min. | Min. | Min. | |||
| 1 | 1/2" | 22.2 | 21.8 | 12.5 | 11.0 | 5.97 | 5.18 | 9.5 | 4.78 | 12.5 |
| 2 | 3/4" | 27.6 | 27.2 | 16.3 | 14.8 | 6.96 | 6.04 | 12.5 | 5.56 | 14.0 |
| 3 | 1" | 34.3 | 33.9 | 21.5 | 19.9 | 7.92 | 6.93 | 12.5 | 6.35 | 17.5 |
| 4 | 1 1/4" | 43.1 | 42.7 | 30.2 | 28.7 | 7.92 | 6.93 | 12.5 | 6.35 | 20.5 |
| 5 | 1 1/2" | 49.2 | 48.8 | 34.7 | 33.2 | 8.92 | 7.80 | 12.5 | 7.14 | 25.5 |
| 6 | 2" | 61.7 | 61.2 | 43.6 | 42.1 | 10.92 | 9.50 | 16.0 | 8.74 | 28.5 |
NOTE : 1. All Dimension are in mm unless specified
2. Dimension are as per ASME B 16.11.
3. Avg.of socket wall thickness around periphery shall not be less than listed values.

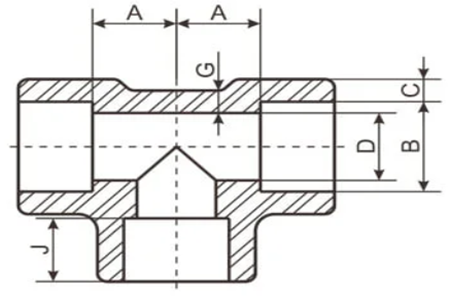

| Sw Equal Tee | ||||||||||
 |
||||||||||
| Sr. No. | Size | Socket Bore Dia | Bore Diameter | Socket Wall Thickness | Socket Depth | Body Wall | Center to bottom of Socket | |||
| (NPS) | (B) | (D) | ( C) | (J) | (G) | (A) | ||||
| 3000# | 3000# | |||||||||
| Max. | Min. | Max. | Min. | Avg. | Min. | Min. | Min. | |||
| 1 | 1/2" | 22.2 | 21.8 | 16.6 | 15.0 | 4.67 | 4.09 | 9.5 | 3.73 | 15.5 |
| 2 | 3/4" | 27.6 | 27.2 | 21.7 | 20.2 | 4.90 | 4.27 | 12.5 | 3.91 | 19.0 |
| 3 | 1" | 34.3 | 33.9 | 27.4 | 25.9 | 5.69 | 4.98 | 12.5 | 4.55 | 22.5 |
| 4 | 1 1/4" | 43.1 | 42.7 | 35.8 | 34.3 | 6.07 | 5.28 | 12.5 | 4.85 | 27.0 |
| 5 | 1 1/2" | 49.2 | 48.8 | 41.6 | 40.1 | 6.35 | 5.54 | 12.5 | 5.08 | 32.0 |
| 6 | 2" | 61.7 | 61.2 | 53.3 | 51.7 | 6.93 | 6.04 | 16.0 | 5.54 | 38.0 |
| 7 | 2 1/2" | 74.4 | 73.9 | 64.2 | 61.2 | 8.76 | 7.67 | 16.0 | 7.01 | 41.0 |
| 8 | 3" | 90.3 | 89.8 | 79.4 | 76.4 | 9.52 | 8.30 | 16.0 | 7.62 | 57.0 |
| 9 | 4" | 115.7 | 115.2 | 103.8 | 100.7 | 10.69 | 9.35 | 19.0 | 8.56 | 66.5 |
NOTE : 1. All Dimension are in mm unless specified
2. Dimension are as per ASME B 16.11.
3. Avg.of socket wall thickness around periphery shall not be less than listed values.
| Sr. No. | SIZE | Socket Bore Dia | Bore Diameter | Socket Wall Thickness | Socket Depth | Body Wall | Center to bottom of Socket | |||
| (NPS) | (B) | (D) | ( C) | (J) | (G) | (A) | ||||
| 6000# | 6000# | |||||||||
| Max. | Min. | Max. | Min. | Avg. | Min. | Min. | Min. | |||
| 1 | 1/2" | 22.2 | 21.8 | 12.5 | 11.0 | 5.97 | 5.18 | 9.5 | 4.78 | 19.0 |
| 2 | 3/4" | 27.6 | 27.2 | 16.3 | 14.8 | 6.96 | 6.04 | 12.5 | 5.56 | 22.5 |
| 3 | 1" | 34.3 | 33.9 | 21.5 | 19.9 | 7.92 | 6.93 | 12.5 | 6.35 | 27.0 |
| 4 | 1 1/4" | 43.1 | 42.7 | 30.2 | 28.7 | 7.92 | 6.93 | 12.5 | 6.35 | 32.0 |
| 5 | 1 1/2" | 49.2 | 48.8 | 34.7 | 33.2 | 8.92 | 7.80 | 12.5 | 7.14 | 38.0 |
| 6 | 2" | 61.7 | 61.2 | 43.6 | 42.1 | 10.92 | 9.50 | 16.0 | 8.74 | 41.0 |
NOTE : 1. All Dimension are in mm unless specified
2. Dimension are as per ASME B 16.11.
3. Avg.of socket wall thickness around periphery shall not be less than listed values.

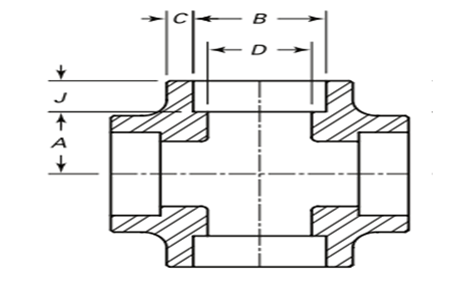

| SW CROSS | ||||||||||
 |
||||||||||
| Sr. No. | SIZE | Socket Bore Dia | Bore Diameter | Socket Wall Thickness | Socket Depth/td> | Body Wall | Center to bottom of Socket | |||
| (NPS) | (B) | (D) | ( C) | (J) | (G) | (A) | ||||
| 3000# | 3000# | |||||||||
| Max. | Min. | Max. | Min. | Avg. | Min. | Min. | Min. | |||
| 1 | 1/2" | 22.2 | 21.8 | 16.6 | 15.0 | 4.67 | 4.09 | 9.5 | 3.73 | 15.5 |
| 2 | 3/4" | 27.6 | 27.2 | 21.7 | 20.2 | 4.90 | 4.27 | 12.5 | 3.91 | 19.0 |
| 3 | 1" | 34.3 | 33.9 | 27.4 | 25.9 | 5.69 | 4.98 | 12.5 | 4.55 | 22.5 |
| 4 | 1 1/4" | 43.1 | 42.7 | 35.8 | 34.3 | 6.07 | 5.28 | 12.5 | 4.85 | 27.0 |
| 5 | 1 1/2" | 49.2 | 48.8 | 41.6 | 40.1 | 6.35 | 5.54 | 12.5 | 5.08 | 32.0 |
| 6 | 2" | 61.7 | 61.2 | 53.3 | 51.7 | 6.93 | 6.04 | 16.0 | 5.54 | 38.0 |
| 7 | 2 1/2" | 74.4 | 73.9 | 64.2 | 61.2 | 8.76 | 7.67 | 16.0 | 7.01 | 41.0 |
| 8 | 3" | 90.3 | 89.8 | 79.4 | 76.4 | 9.52 | 8.30 | 16.0 | 7.62 | 57.0 |
| 9 | 4" | 115.7 | 115.2 | 103.8 | 100.7 | 10.69 | 9.35 | 19.0 | 8.56 | 66.5 |
NOTE : 1. All Dimension are in mm unless specified
2. Dimension are as per ASME B 16.11.
3. Avg.of socket wall thickness around periphery shall not be less than listed values.
| Sr. No. | SIZE | Socket Bore Dia | Bore Diameter | Socket Wall Thickness | Socket Depth | Body Wall | Center to bottom of Socket | |||
| (NPS) | (B) | (D) | ( C) | (J) | (G) | (A) | ||||
| 6000# | 6000# | |||||||||
| Max. | Min. | Max. | Min. | Avg. | Min. | Min. | Min. | |||
| 1 | 1/2" | 22.2 | 21.8 | 12.5 | 11.0 | 5.97 | 5.18 | 9.5 | 4.78 | 19.0 |
| 2 | 3/4" | 27.6 | 27.2 | 16.3 | 14.8 | 6.96 | 6.04 | 12.5 | 5.56 | 22.5 |
| 3 | 1" | 34.3 | 33.9 | 21.5 | 19.9 | 7.92 | 6.93 | 12.5 | 6.35 | 27.0 |
| 4 | 1 1/4" | 43.1 | 42.7 | 30.2 | 28.7 | 7.92 | 6.93 | 12.5 | 6.35 | 32.0 |
| 5 | 1 1/2" | 49.2 | 48.8 | 34.7 | 33.2 | 8.92 | 7.80 | 12.5 | 7.14 | 38.0 |
| 6 | 2" | 61.7 | 61.2 | 43.6 | 42.1 | 10.92 | 9.50 | 16.0 | 8.74 | 41.0 |
NOTE : 1. All Dimension are in mm unless specified
2. Dimension are as per ASME B 16.11.
3. Avg.of socket wall thickness around periphery shall not be less than listed values.
 |
|||||||||||||||
| DN | Nom. Pipe | Socket | Bore Dia. Of Fitting D | Socket Wall Thickness | Depth of | End Wall Thickness | |||||||||
| 3000# | 6000# | 9000# | 3000# | 6000# | 9000# | ||||||||||
| 3000# | 6000# | 9000# | Avg | Min | Avg | Min | Avg | Min | |||||||
| 6 | 1/8” | 10.8 | 6.9 | 4 | - | 3.18 | 3.18 | 3.96 | 3.43 | - | - | 9.5 | 4.8 | 6.4 | - |
| 8 | 1/4” | 14.2 | 9.3 | 6.4 | - | 3.78 | 3.3 | 4.6 | 4.01 | - | - | 9.5 | 4.8 | 6.4 | - |
| 10 | 3/8” | 17.6 | 12.6 | 9.2 | - | 4.01 | 3.5 | 5.03 | 4.37 | - | - | 9.5 | 4.8 | 6.4 | - |
| 15 | 1/2” | 21.8 | 15.8 | 11.8 | 6.4 | 4.67 | 4.09 | 5.97 | 5.18 | 9.35 | 8.18 | 9.5 | 6.4 | 7.9 | 11.2 |
| 20 | 3/4” | 27.2 | 21 | 15.6 | 11.1 | 4.9 | 4.27 | 6.96 | 6.04 | 9.78 | 8.56 | 12.5 | 6.4 | 7.9 | 12.7 |
| 25 | 1” | 33.9 | 26.7 | 20.7 | 15.2 | 5.69 | 4.98 | 7.92 | 6.93 | 11.38 | 9.96 | 12.5 | 9.6 | 11.2 | 14.2 |
| 32 | 1-1/4” | 42.7 | 35.1 | 29.5 | 22.8 | 6.07 | 5.28 | 7.92 | 6.93 | 12.14 | 10.62 | 12.5 | 9.6 | 11.2 | 14.2 |
| 40 | 1-1/2” | 48.8 | 40.9 | 34 | 28 | 6.35 | 5.54 | 8.92 | 7.8 | 12.7 | 11.12 | 12.5 | 11.2 | 12.7 | 15.7 |
| 50 | 2” | 61.2 | 52.5 | 42.9 | 38.2 | 6.93 | 6.04 | 10.92 | 9.5 | 13.84 | 12.12 | 16 | 12.7 | 15.7 | 19 |
| 65 | 2-1/2” | 73.9 | 62.7 | - | - | 8.76 | 7.67 | - | - | - | - | 16 | 15.7 | 19 | - |
| 80 | 3” | 89.8 | 78 | - | - | 9.52 | 8.3 | - | - | - | - | 16 | 19 | 22.4 | - |
| 100 | 4” | 115.2 | 102.3 | - | - | 10.69 | 9.35 | - | - | - | - | 19 | 22.4 | 28.4 | - |
Note:
(1) Average of socket wall thickness around periphery shall be no less than listed values. The minimum values are permitted in localized areas.
(2) Dimensions in accordance with ASME B16.11-2011.
